High-speed PVC powder mixer for uniform, efficient processing.
Rapid Mixing：
High linear blade speed ensures fast, uniform heat distribution.
Precision Construction：
Polished SUS304 chamber resists corrosion and prevents material buildup.
Leak-Free Design：
Quadruple oil and air seals prevent powder leakage effectively.
Place of Origin:China
Brand Name:Mixing Machine

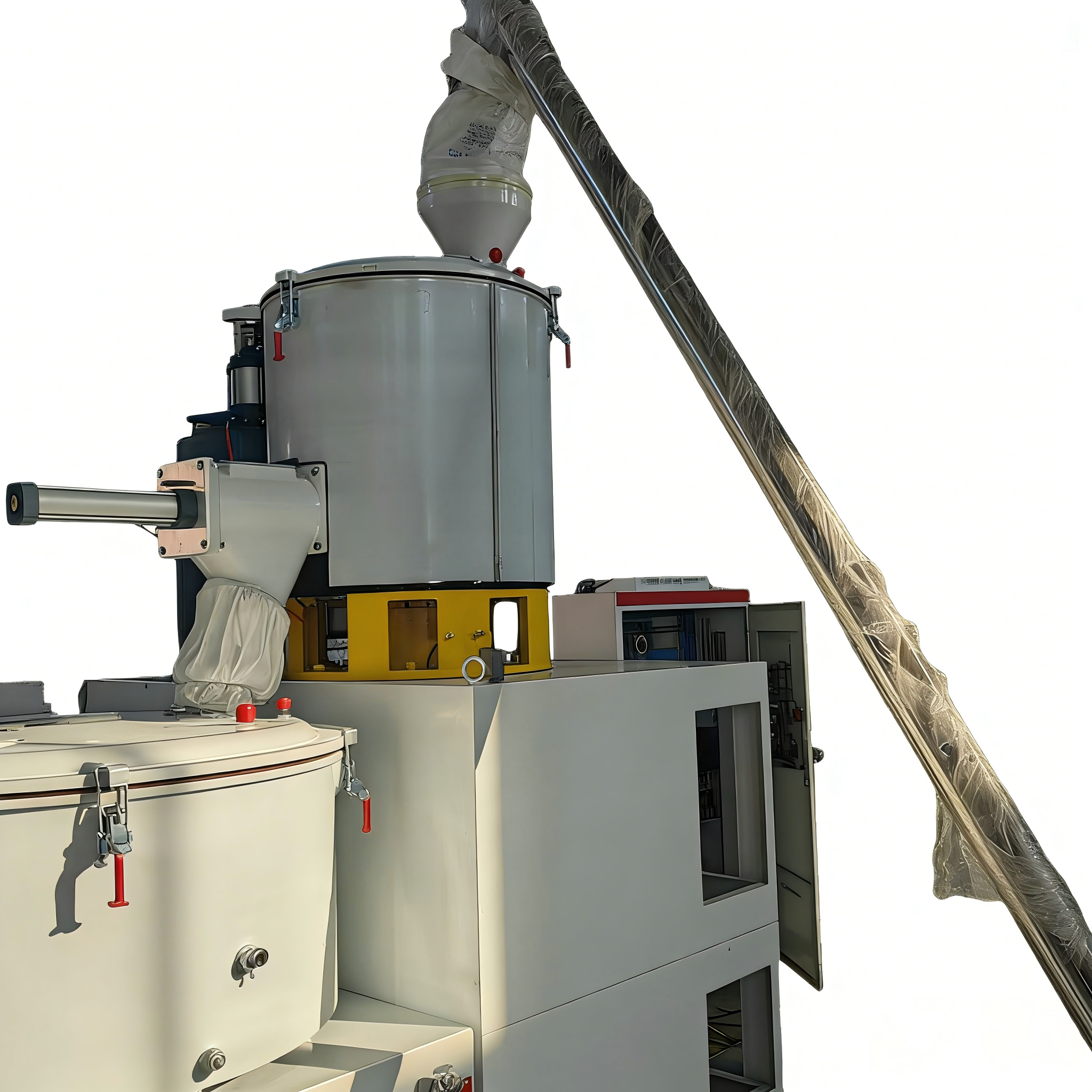

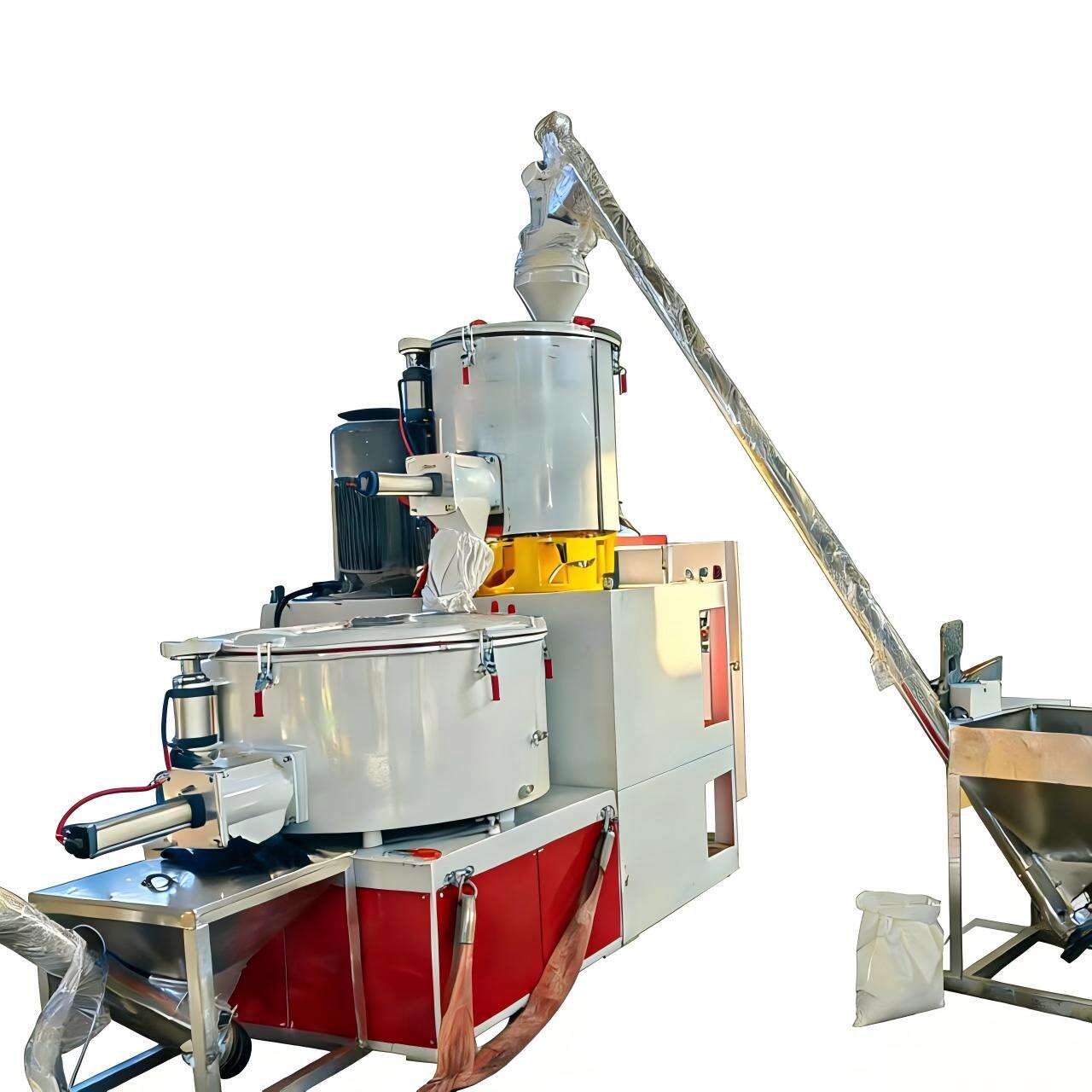

This High Speed PVC Powder Mixing Machine is the core equipment specially designed for the polyvinyl chloride (PVC) industry. Utilizing an advanced vertical structure and high-speed turbine technology. Through the high linear speed friction between the blades and materials, it achieves uniform mixing and the required temperature in a very short time .
We understand the strict requirements for temperature control and formula stability in PVC processing. Therefore, the mixing chamber is precision-welded with high-quality SUS304 stainless steel. The inner surface is finely polished to be smooth and hard, offering excellent corrosion resistance and non-stick properties . The main shaft features a quadruple oil seal and air seal structure, completely preventing powder leakage and ensuring a clean production environment . Whether producing dry blend for rigid PVC pipes and profiles or for flexible PVC granulation and coloring, this machine delivers stable dispersion and outstanding mixing efficiency.
PVC Pipe & Profile Production: Ideal for preparing rigid PVC dry blend, ensuring complete homogenization of resin with fillers (CaCO3), stabilizers, and lubricants.
PVC Granulation & Compounding: Suitable for mixing processes of cable materials, sole materials, and injection molding grades, providing uniformly pre-plasticized material for the extruder .
PVC Powder Coloring: Quickly blends pigments or color powder with PVC resin; the frictional heat allows full dispersion of the pigment to prevent color spots .
Wood-Plastic Composites (WPC/SPC): Handles high-filling formulations for stone plastic composite flooring or wood-plastic products .
Rapid Mixing, Energy Saving: Special designed 2-layer or 3-layer stainless steel blades are dynamically balanced for smooth operation. The self-friction heating method quickly raises material temperature. Batch mixing time is only 8-12 minutes, with much lower energy consumption than traditional heating .
Military-Grade Sealing, Zero Leakage: Targeting the pain point of fine PVC powder leakage, we utilize an advanced quadruple framework oil seal combined with air purge protection. This ensures no powder leaks from the main shaft even under high temperature, extending bearing life .
High Wear & Corrosion Resistance: All contact parts are made of SUS304 stainless steel, with volumes ranging from 50L to 1000L. For highly filled PVC formulas, thickened inner walls and wear-resistant coatings are available .
Intelligent Control, Precise Discharge: Equipped with Siemens or ABB electrical components. The PLC control system can store up to 99 recipes. The pneumatic discharge valve features a direct connection design for reliable sealing, quick opening, and minimal residue
Q1: Can your mixer handle PVC resin powder mixed with Calcium Carbonate?
A1: Absolutely. Our machine is designed precisely for this application. The high-speed blades not only thoroughly mix the PVC resin with fillers like CaCO3 and stabilizers but also pre-gelatinize the material through frictional heat, making it perfect for dry blend production for pipes and profiles .
Q2: Are the blades and inner wall wear-resistant? Can they be replaced?
A2: Our standard blades are made of SUS304 stainless steel. For highly abrasive materials (like those with glass fiber or high calcium content), we can provide surface hardening treatment or spray a wear-resistant coating. The blades are designed to be detachable for easy maintenance and replacement without changing the entire chamber .
Q3: Can the machine voltage adapt to European and American standards?
A3: Yes, the motor and control system can be customized. The standard configuration is 380V/50Hz, but we can adjust it to 220V/60Hz or 460V/60Hz for the North American market, equipped with corresponding CE or UL certified electrical components
