Heavy-Duty Construction
Built with stress-relieved steel for superior stability and durability in high-hardness material processing.
V-Shaped Cutting Rotor
Ensures smooth feeding, low dust generation, and consistent particle size.
Water-Cooled Bearing Housing
Effectively manages heat, extending bearing life and preventing overheating during crushing.
Place of Origin:China
Brand Name:PVC Sheet Crusher

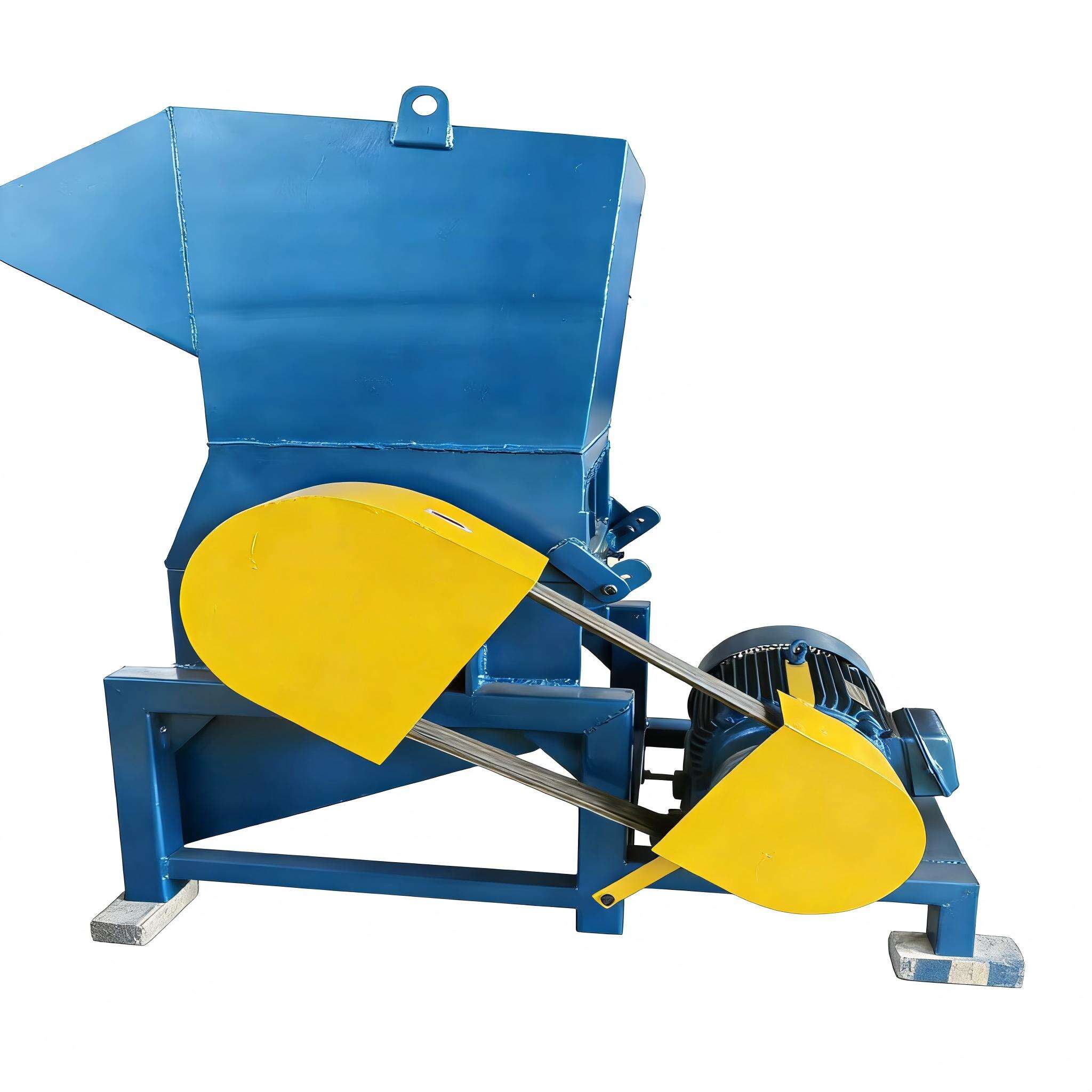

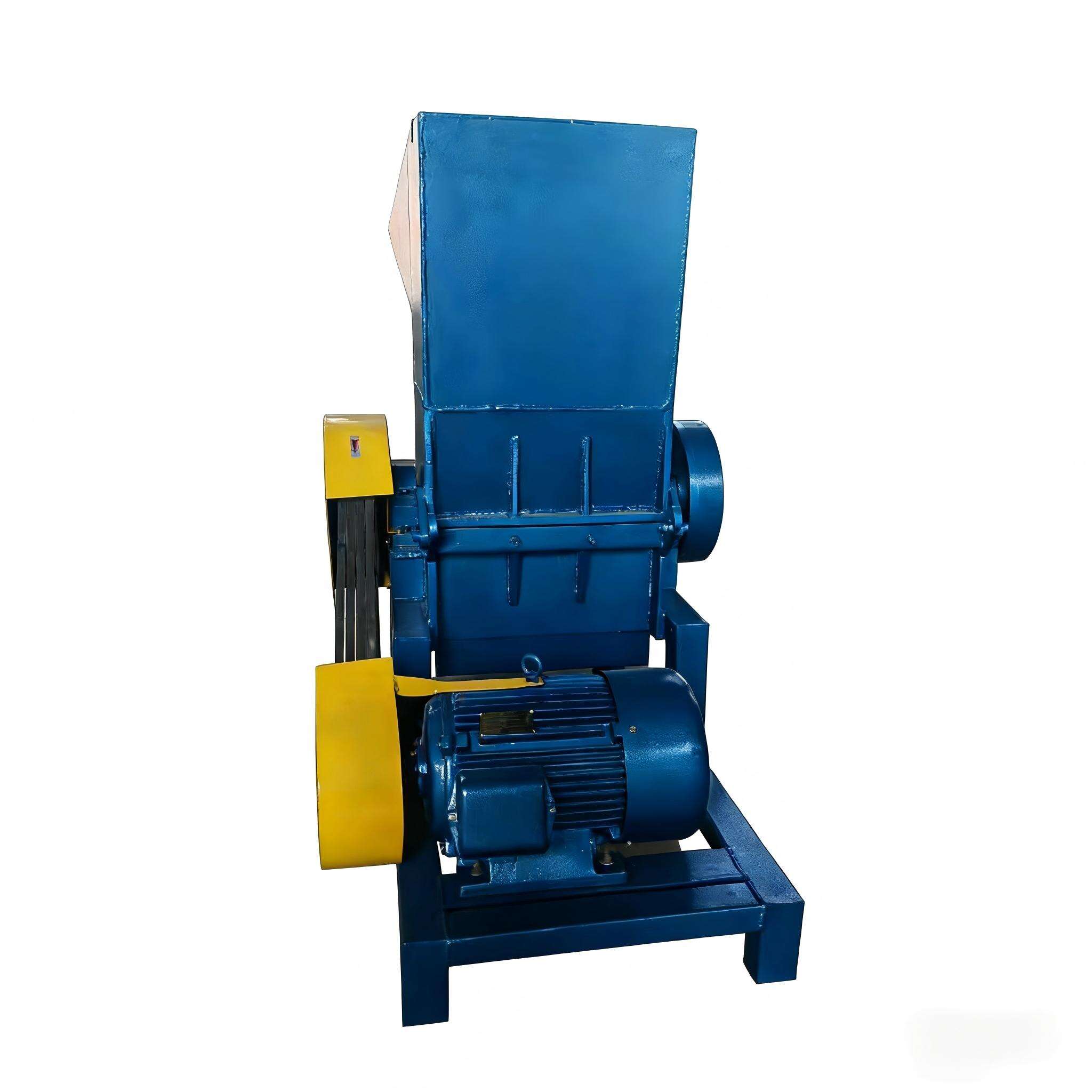

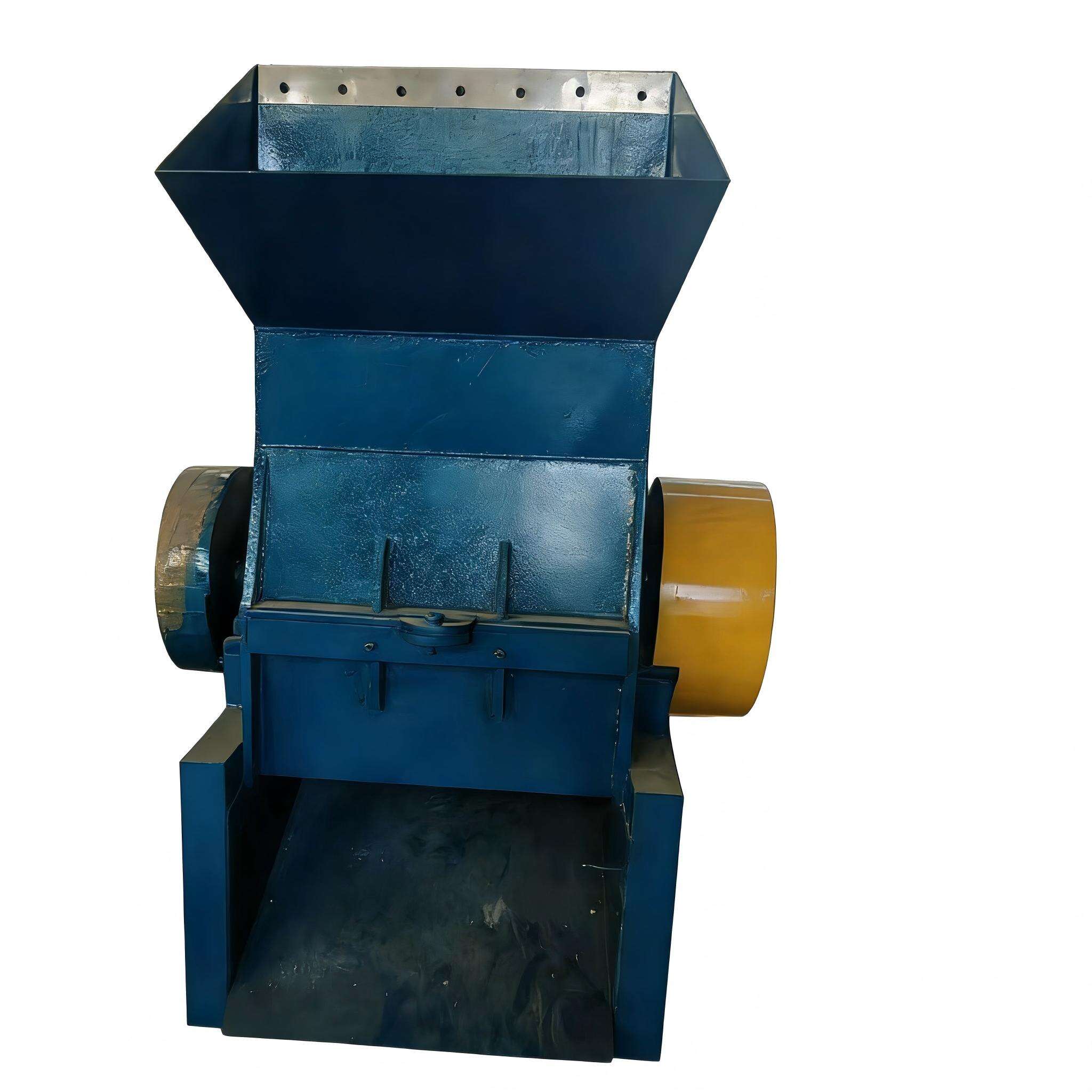

This PVC Sheet dedicated crusher is a powerful size reduction solution developed specifically for rigid Polyvinyl Chloride (PVC) sheets, plates, pipes, and profiles. The main body is constructed with heavy-duty steel plate welding and undergoes stress-relief treatment to ensure exceptional stability and durability when processing high-hardness materials. Recognizing the brittle nature and high impact resistance of PVC sheets, we have engineered a rotor with a V-shaped cutting technology. Paired with removable knives made of D2 tool steel, this design ensures smooth feeding, low dust generation, and high uniformity in the final output.
Material is fed into the crushing chamber via conveyor or manually. It is immediately sheared by the rotating knives on the rotor against the stationary knives mounted on the chamber. The specially designed water-cooled bearing housing effectively manages the heat generated during PVC crushing, significantly extending bearing life. An interchangeable screen at the bottom controls the output size, ensuring uniform particles (typically 20mm-50mm) that are ideal for subsequent washing, pelletizing, or direct reuse.
Window & Door Industry: Perfect for offline lamination of PVC window frames, door edges, and aluminum profile cladding.
Furniture Manufacturing: Ideal for wrapping drawer fronts, chair components, and decorative moldings with wood grain or solid color films.
Architectural Decoration: Suitable for covering skirting boards, handrails, and wall panels with wear-resistant surfaces.
Engineered for Rigid Materials, Longer Blade Life: Unlike standard crushers, our rotor features a stepped knife arrangement to enhance gripping force on hard sheets. Significantly reducing operational costs.
High Torque at Low Speed, Energy Saving: For thick plates, we offer a gearbox direct-drive option. This setup generates immense torque at low speeds , reducing noise and dust.
Safety Interlock, Easy Maintenance: The crushing chamber hood is fitted with a limit switch. When the cover is opened for maintenance, the machine automatically cuts power, ensuring absolute operator safety. The separate bearing housing design provides ample space for maintenance.
Q1: Can your crusher handle waste PVC windows with nails?
A1: Absolutely. The blade strength of our standard model is sufficient to cut through aluminum or steel nails. However, for large amounts of metal contamination, we strongly recommend adding a magnetic separator conveyor to automatically remove ferrous metals after crushing, protecting downstream equipment and increasing purity .
Q2: What if excessive heat during PVC crushing causes rapid blade wear?
A2: That is a key challenge. Our solution includes: 1. Standard water-cooling circulation ports on bearing housings; 2. A larger pulley inertia design to reduce impact heat; 3. An optional Titanium coating for blades to increase surface lubricity and reduce friction .
Q3: What if the output particle size is inconsistent?
A3: Output size is primarily determined by the screen. Please check if the screen is damaged. Also, ensure the blades are sharp and the gap between rotating and fixed blades is set between 0.3mm and 0.5mm.
